Harness-Tech

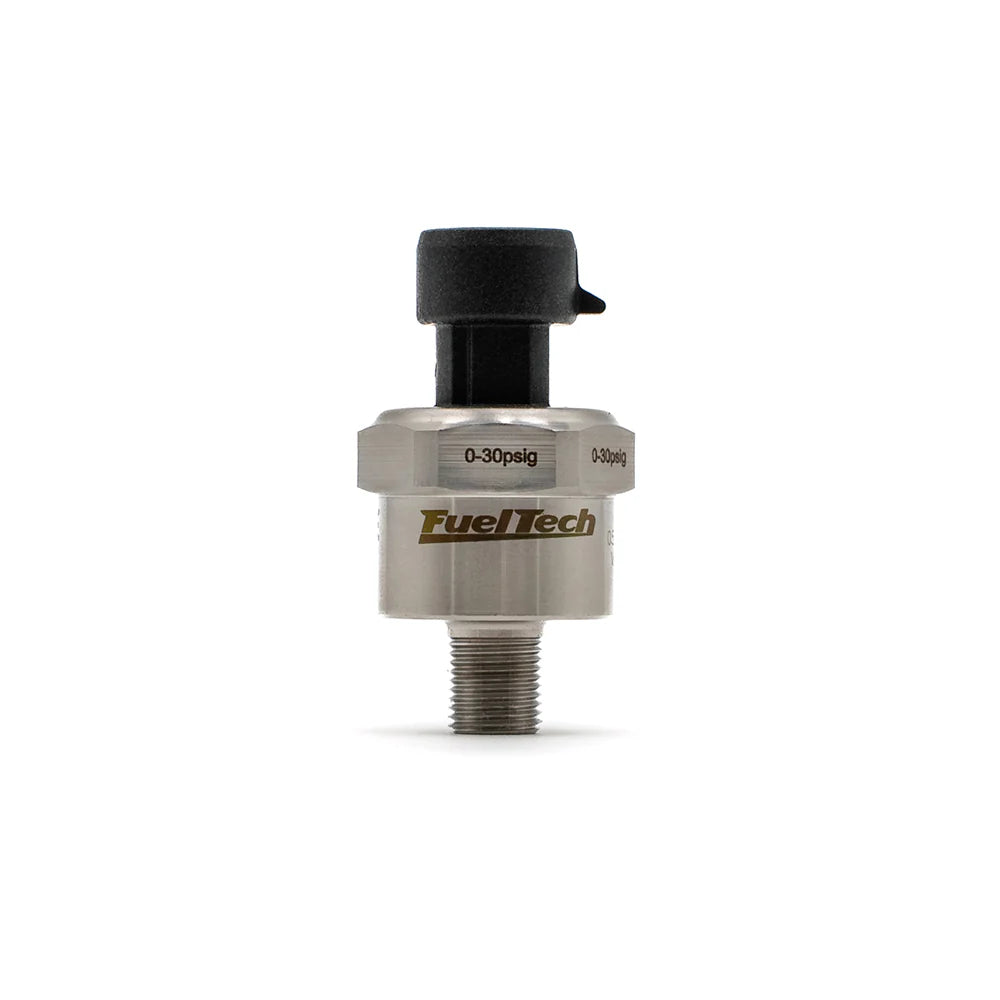

PRESSURE SENSOR SHORT BODY

$164.81 AUD

Sale Sold out

RANGE (PSI) 0-30 PSI 0-150 PSI 0-300 PSI 0-500 PSI 0-1500 PSI

FuelTech's Pressure Sensors provide accurate and reliable pressure readings in high-performance automotive applications such as racing. Engineered for precision and durability, these sensors deliver real-time data essential for optimizing engine performance and ensuring safe operation. Whether used for monitoring fuel, oil, or boost pressure, these sensors provide invaluable insights to enthusiasts and professionals alike, making them an indispensable component in any performance-driven setup.

TECHNICAL DESCRIPTION
Output: 0.5-4.5V
Supply: 5V
Thread size: 1/8" NPT
Height: 45.5 mm (52.8 mm for 0-30 PSI)
Hex Diameter: 27 mm
Material: Stainless steel
Ranges: PS30, PS150, PS300, PS500, PS1500

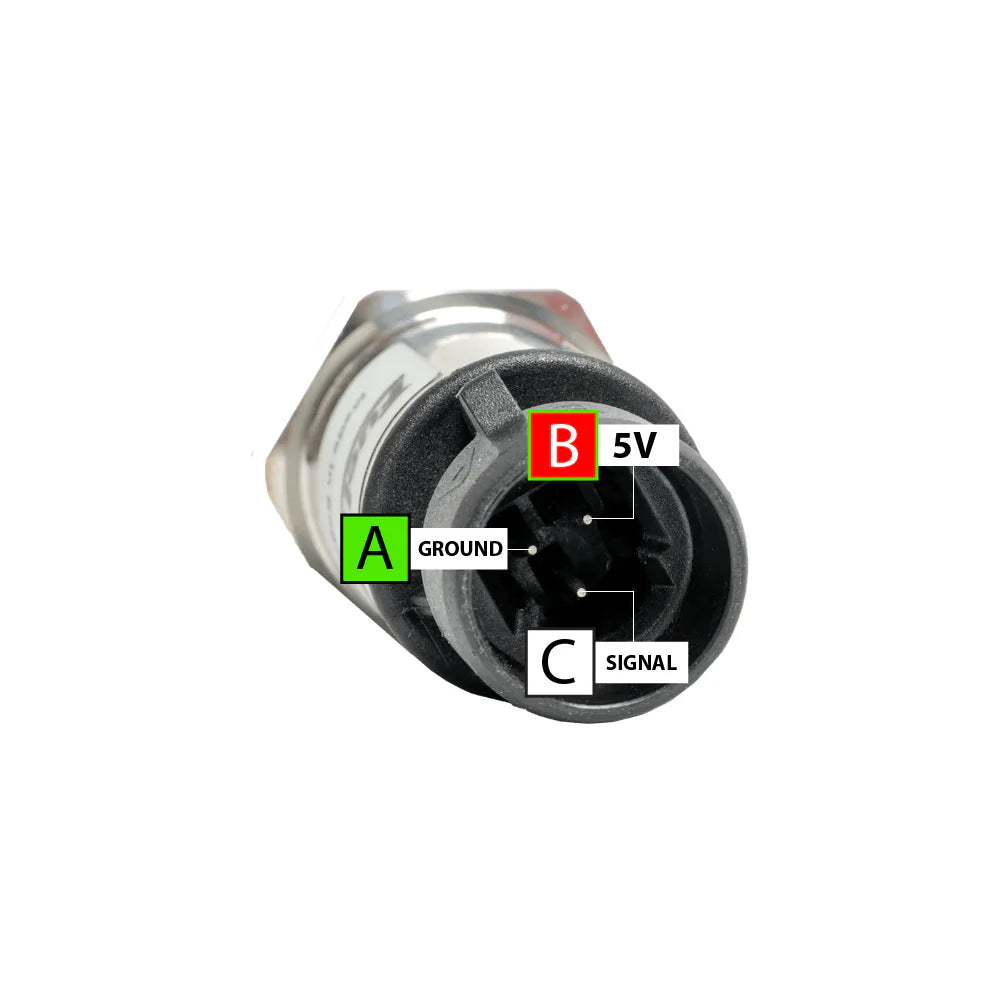

Connector Pinout:

A - Ground
B - 5V
C - Signal
SPECS
Accuracy: ±1.0% span

Stability: ≤±0.25% of span/year

Compensated Temp: -58°F to +257°F (-40°C to +125°C)

Operating Temp: -40°F to +257°F (-40°C to +125°C)

Zero Tolerance: 0.5% of span

Span Tolerance: 0.5% of span

Response Time: < 5ms

Warm-up Time: < 20ms

Fatigue Life: 50M Cycles

Wetted Parts: 17-4 PH Stainless Steel

Enclosure: IP67 (IP65 for electrical code G)
