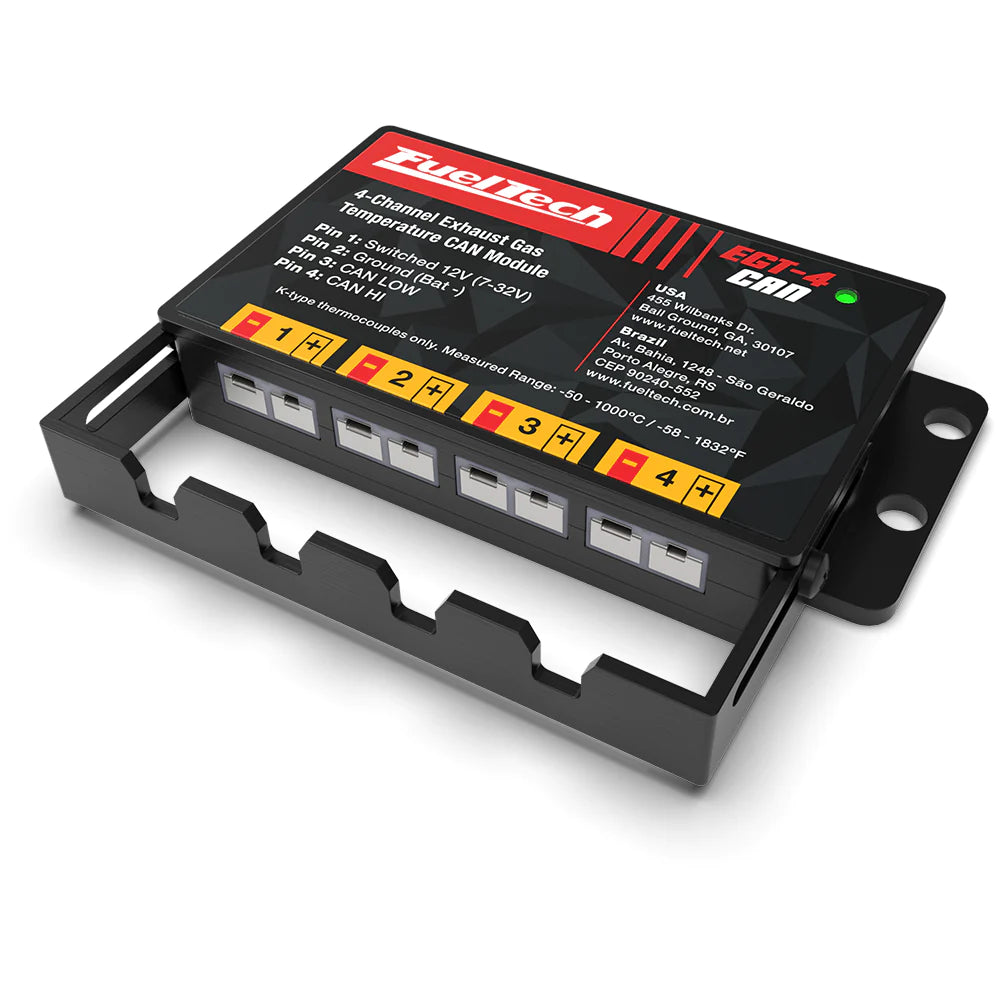

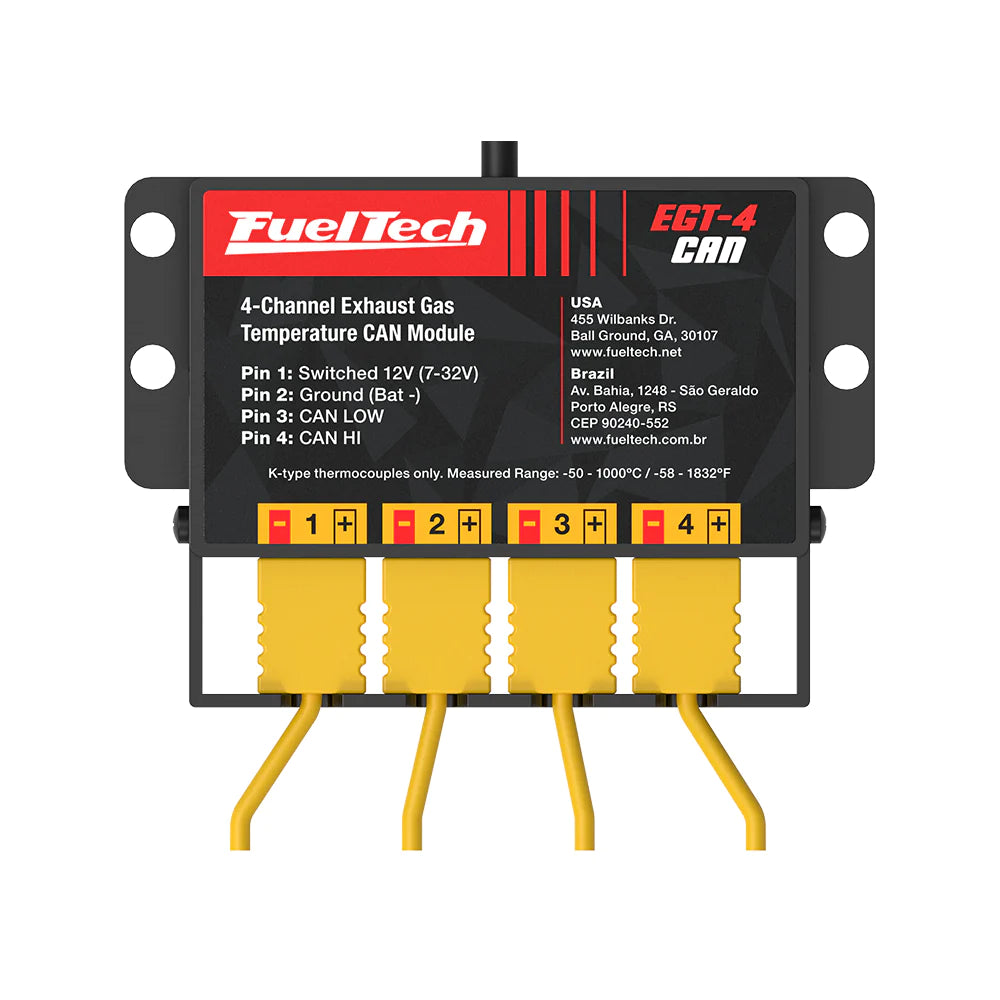

4 channel conditioner for Type K thermocouples with CAN communication for PowerFT ECU's.


  • The FuelTech EGT-4 CAN is compatible with any type K thermocouple (grounded junction or not).
  • 4 channel signal conditioner with CAN bus communication for PowerFT ECU's, can be used to read EGT's, CHT's, oil, air, water or any other temperature using a type K thermocouple.
  • Works as an input expander for PowerFT ECU's, freeing up 4 white input channels to be used for other purposes.
  • With the possibility to use up to 4 EGT-4 modules in the same installation, as much as 16 different channels will be available for all sorts of data acquisition.
  • Compatible with Power FT ECU's (FT450, FT550, FT600, FT500LITE and FT 550LITE).





PACKAGES

V8 / 2 units, harnesses and 8 sensors:

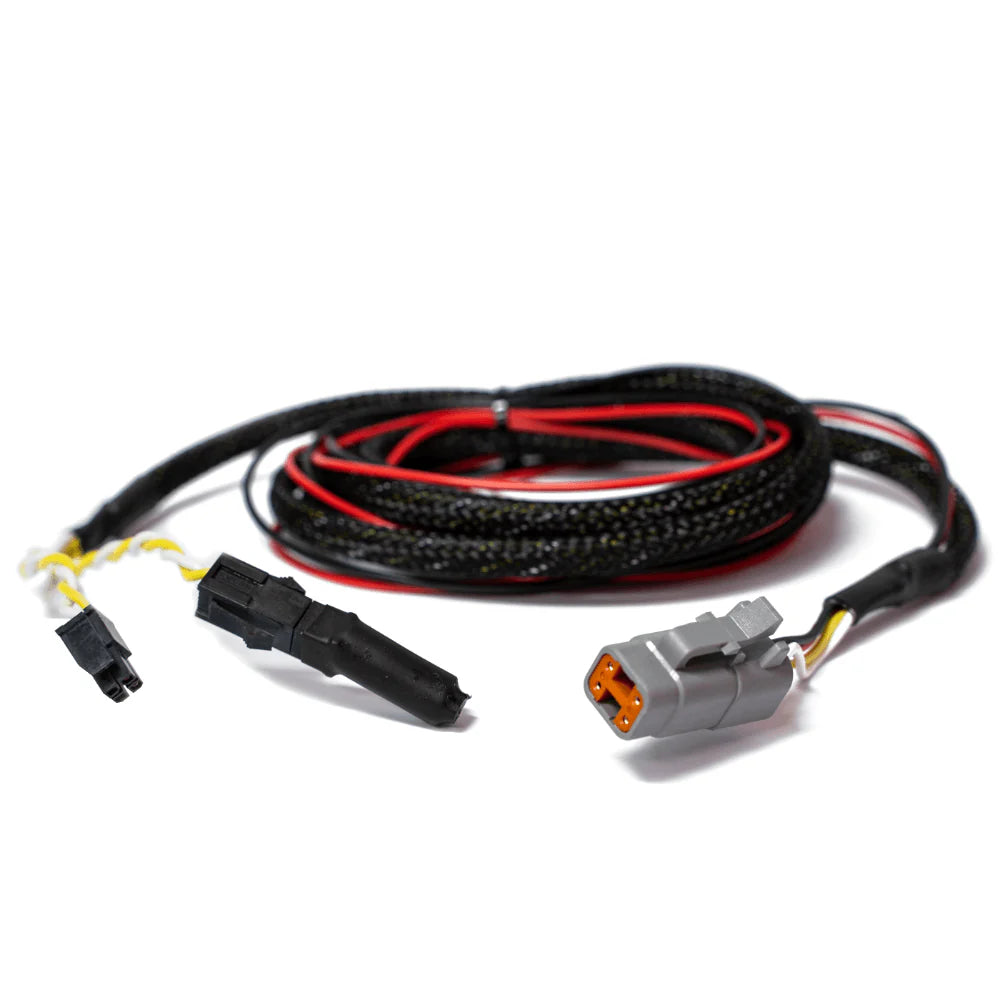

w/ 2 harnesses
2 of each 42"/36"/30"/24" Thermocouple sensors


6 cylinder / 2 units, harnesses and 6 sensors:
w/ 2 harnesses
48"/42"/36"/30"/24"/18" Thermocouple sensors


4 cylinder / harness and 4 sensors:
w/ harness
42"/36"/30"/24" Thermocouple sensors


4 rotor / harness and 4 sensors:
w/ harness
4 of the 36" Thermocouple sensors


3 rotor / harness and 3 sensors:
w/ harness
3 of the 36" Thermocouple sensors


2 rotor / harness and 2 sensors:
w/ harness
2 of the 36" Thermocouple sensors
